Home Products Metal & Alloy WireOval Wires

Oval Wires – High Tensile & Corrosion Resistance

We can supply wide ranges of oval wires for your specific applications and distributions.

Hot dipped galvanized oval wires are popular in livestock breeders. They are easy to handle and corrosion & rust resistance to create the containment and protection fences in flat or regular regions. High tensile strength structures can withstand the impact from livestock and guarantee elastic effect on fence with maximum efficiency.

Standard is 2.4 × 3.0 mm, 2.2 × 2.7 mm and 2.3 × 2.8 mm.
Hot dipped galvanized for corrosion resistance.
Ideal for vineyard and livestock fencing.
Popular in South Africa markets.
Special discounts for large orders.
Custom service can be accepted.

Contact Now

A roll of hot dipped galvanized oval wires on white background.

Specifications

Materials: low carbon steel wires.
Surface treatment: hot dipped galvanized.
Lengths: 1000 m, 500 m and 1250 m standard.
Main markets: Australia, Brazil, Paraguay, Argentina, Uruguay, Venezuela, Argentina, Chile, etc.
Package: plastic film and woven bag package.
Tensile strength: 600 kgf to 1550 kgf.

Popular Specifications of Oval Wires
Specification		Breaking Force	Zinc Coating	Diameter Tolerance	Length	Weight
17 × 15	3.0 × 2.4 mm	700 kgf	min. 80 g/m²	±0.06 mm	1000 m	45 kg
16 × 14	2.7 × 2.2 mm	600 kgf	min. 80 g/m²	±0.06 mm	1250 m	45 kg
15 × 13	2.4 × 2.0 mm	500 kgf	min. 80 g/m²	±0.06 mm	1500 m	45 kg
14 × 12	2.2 × 1.8 mm	400 kgf	min. 80 g/m²	±0.06 mm	1900 m	45 kg
12 Gauge	2.4 × 2.8 mm	500 MPa	min. 50 g/m²	±0.06 mm	465 m	25 kg
6 Gauge	4.55 × 5.25 mm	500 MPa	min. 50 g/m²	±0.06 mm	170 m	25 kg

Details

Production line

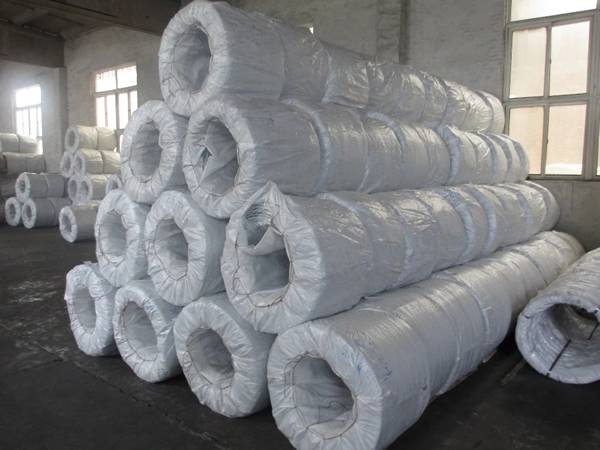

Warehouse

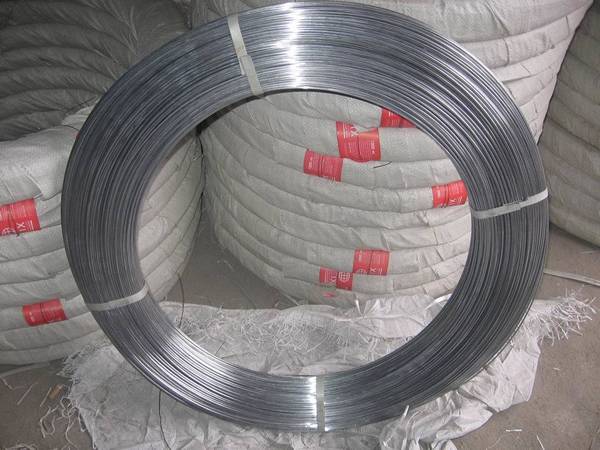

A roll of oval wire on the ground and other oval wires are packed with woven bags.

Package

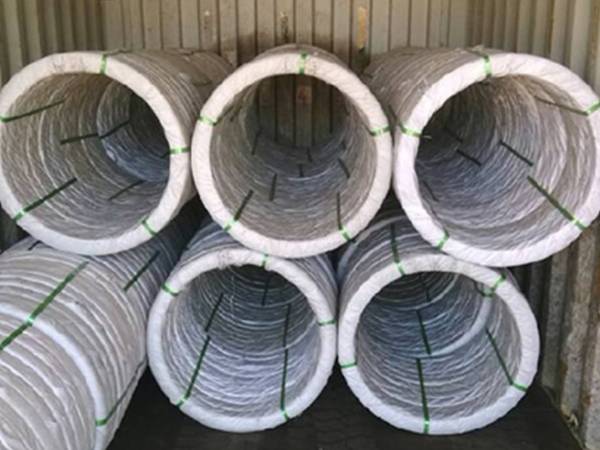

Several rolls of oval wires in the container.

Loading

Applications

Division of pasture and areas
Animal containment.
Construction of fences in rural flat terrain or irregular areas.

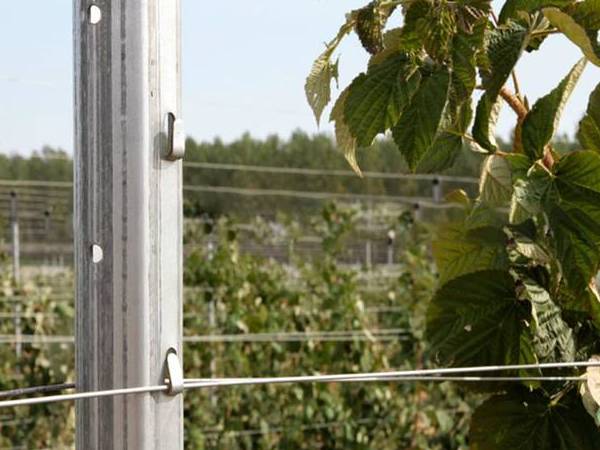

The oval wires are installed on the vineyard post.

Vineyard fence

The oval wires are fastened to the wood frame to enclose the cattle.

Cattle fence

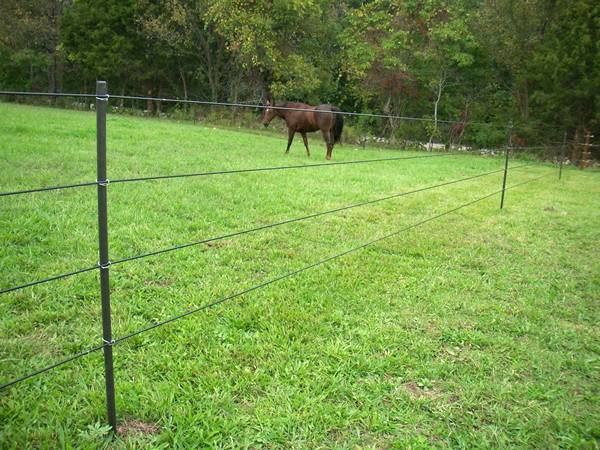

Oval wires and steel posts enclose an area for horse.

Horse containment
