10 gauge to 14 gauge Box Wires for Baling Industries

We can produce and export the box wire in different materials and diameter sizes. Box wire is specially designed for automatic balers for efficient package. We can feed from the center or outside of the coil for trouble-free use.

The box wires are available in black annealed and galvanized steel wires in 10 gauge to 14 gauge diameters.

  • Each coils are packed individually for easy installation onto machine.
  • 50 lbs. or 100 lbs. package for choice.
  • 10 gauge, 11 gauge, 12 gauge and 14 gauge for choice.
  • Black annealed and galvanized materials for choice.
  • Customized logos and package are available.
Contact Now
A coil of box wire and a packed automatic baling wire on white background.

Available types

Two rolls of black annealed box baler wire.

Black annealed box wire

Two rolls of black annealed box baler wire.

Galvanized box wire

Specifications

  • Materials: black annealed wires and galvanized wires.
  • Wire diameter: 10 gauge to 14 gauge.
  • Package: 50 lbs./box or 100 lbs./box.
Item Gauge Diameter Approx. Break Strength (lbs.) Tensile strength Coil weight
AXBW-01 10 Ga. 0.135" 930 to 1073 65,000–75,000 psi 50 lbs.
AXBW-02 11 Ga. 0.121" 747 to 862 65,000–75,000 psi 50 lbs.
AXBW-03 12 Ga. 0.105" 563 to 649 65,000–75,000 psi 50 lbs.
AXBW-04 13 Ga. 0.092" 395 to 495 65,000–75,000 psi 50 lbs.
AXBW-05 14 Ga. 0.080" 327 to 377 65,000–75,000 psi 50 lbs.
AXBW-06 10 Ga. 0.135" 930 to 1073 65,000–75,000 psi 100 lbs.
AXBW-07 11 Ga. 0.121" 747 to 862 65,000–75,000 psi 100 lbs.
AXBW-08 12 Ga. 0.105" 563 to 649 65,000–75,000 psi 100 lbs.

Details

Several rolls of black annealed box baler wires in the warehouse.

Warehouse

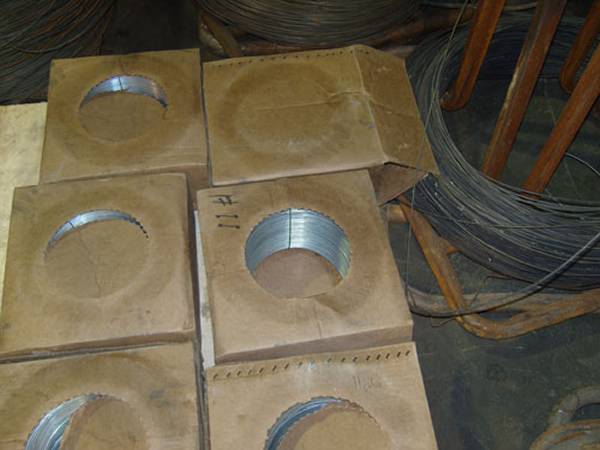

Several galvanized box baler wires in the warehouse

Package

Three pallets of box baler wires in the warehouse

Pallets

Applications

Our box wire (automatic) is recommended for baling cardboard, paper, metal, plastic, lumber and large bundles in auto tie baler.

Five rolls of box wires are installed on the automatic tie baler.

automatic tie baler

Several beverage cans are packed with box wire.

Beverage can package

Several cardboards are packed with box wire.

Cardboards package
