Home Products Metal & Alloy WireBrass Coated Steel Wire

High Strength Brass Coated Steel Wire with Widespread Use

Brass Coated Steel Wire, also called hose reinforcement steel wire is mainly used for making the hose reinforcement, for it has high intensity and good flexibility. The brass coated steel wire can be adhered to the rubber hose more firmly than other steel wires and it is more economical than galvanizes steel wires.

The brass coating can conglutinate with the rubber hose tightly.
High tensile strength of brass coated steel wire.
Much lower impedance at high frequencies than of common steel wire.
Knotting strength is more than 58%.
Free samples are accepted.
The torsion value is more than 50 times.
Large orders enjoy special discount.

Contact Now

Specifications

Material: brass alloy coated steel wire
Wire diameter: 0.2 mm – 0.7 mm, and 0.25 mm are the best sale.
Production Standard: GB 11182-89.
Tensile strength: 2450 N/mm² – 3250 N/mm².
The weight of brass coating: ≥ 3.0 g/kg.
The copper content of the brass coating of steel wire: 68% ± 4%.

Diameter (mm)	Tolerance (mm)	Tensile Strength (N/mm²)	Min.Torsion (No.100d)	Min. Bending (N0)	Knotted Rate (≥%)	Elongation (≥%)	Brass Mass(g/kg)	Cu Content (%)
0.20	±0.010	2150–2450 2450–2750 2750–3050 3050–3350	41 41 41 35	125 125 125 125	58 58 50 50	1.6	3.5–5.5	64–71.5
0.22		2150–2450 2450–2750 2750–3050 3050–3350	41 41 38 32	125 125 125 125	58 58 50 50
0.25		2150–2450 2450–2750 2750–3050 3050–3350	41 41 40 30	125 125 105 75	58 58 50 50
0.28		2150–2450 2450–2750 2750–3050 3050–3350	40 40 35 30	115 105 85 65	58 58 50 50
0.295		2150–2450 2450–2750 2750–3050 3050–3350	40 39 33 28	105 100 85 65	58 58 50 50
0.30		2150–2450 2450–2750 2750–3050 3050–3350	40 39 31 25	105 100 85 65	58 58 50 50
0.32	±0.015	2150–2450 2450–2750 2750–3050 3050–3350	39 38 30 25	90 85 75 65	58 58 50 50	–	–	–
0.33		2150–2450 2450–2750 2750–3050 3050–3350	37 35 30 25	80 75 65 55	58 58 50 50	–	–	–
0.35		2450–2750 2750–3050 3050–3350	35 30 25	60 55 50	58 50 50	–	–	–
0.38		2150–2450 2450–2750 2750–3050 3050–3350	35 35 30 20	65 65 55 50	58 58 50 50	–	–	–
0.40		2150–2450 2450–2750 2750–3050 3050-3350	35 35 30 20	55 55 50 45	58 58 50 50	–	–	–
0.45		2150–2450 2450–2750 2750–3050	30 30 25	45 45 40	58 58 50	1.8	3.0–5.0	–
0.50		2150–2450 2450-2750 2750-3050	30 30 25	40 35 30	50 50 50	1.9
0.56		2150-2450 2450-2750 2750-3050	28 28 24	35 30 25	50 50 50	1.9
0.60		2150-2450 2450-2750	30 28	30 28	50 50	2.0
0.65		2150-2450 2450-2750 2750-3050	27 27 25	27 27 25	50 50 50	2.2
0.70		2150-2450 2450-2750 2750-3050	25 25 24	25 25 24	50 50 50	2.2

Details

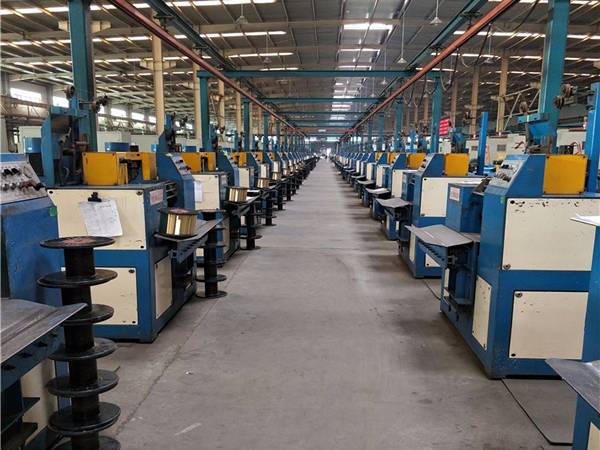

Brass coated wire production line

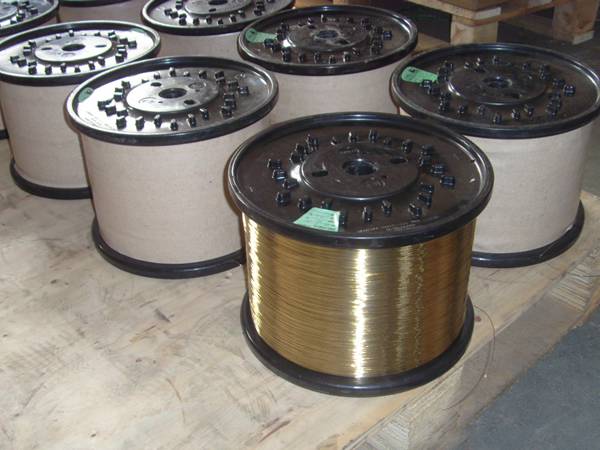

Here is a finished spools of brass coated wire.

Finished brass coated wire

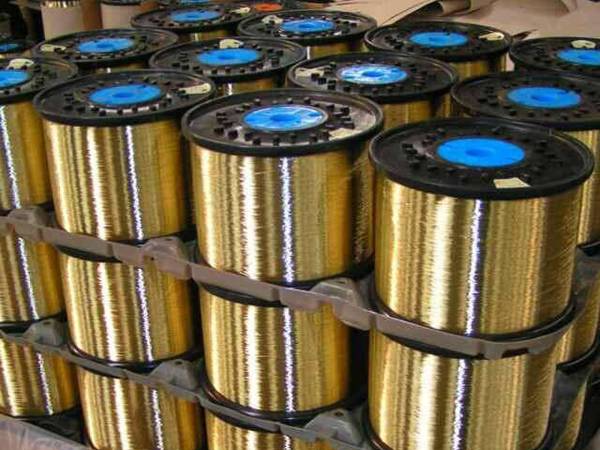

Brass coated wire warehouse

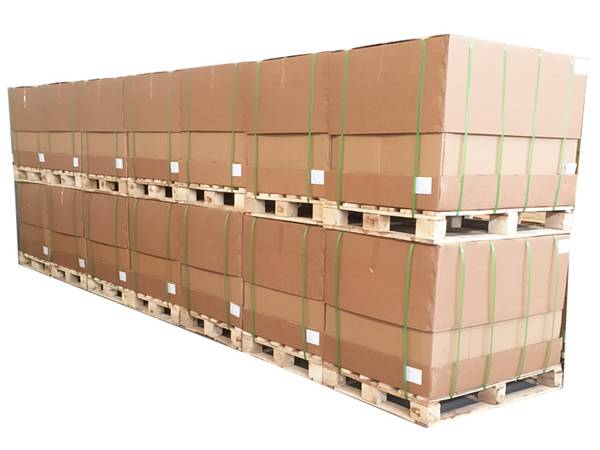

The brass coated wires are packed in the cartons.

Brass coated wire packages

Applications

The brass coated wire is widely applied to making high strength reinforcement hose. And the brass coated wire can be made into wire spiral rubber hose and wire braided rubber hose.

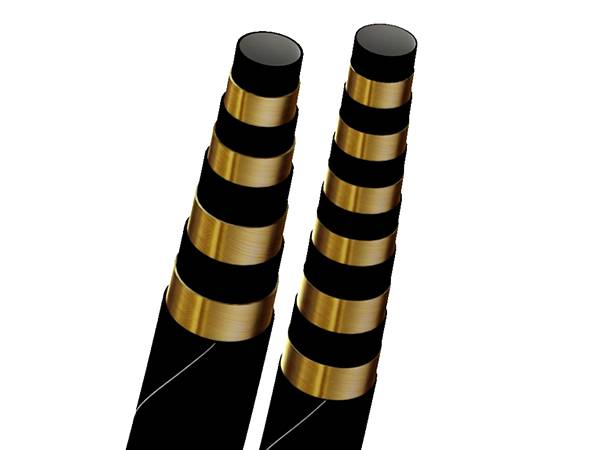

There is a brass coated spiral rubber hose on the white ground.

Wire spiral rubber hose

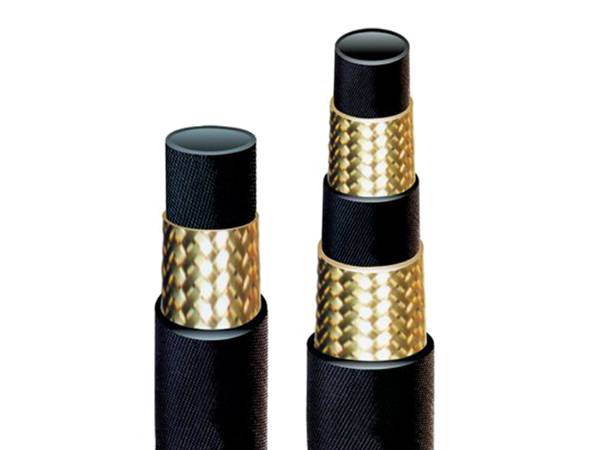

There are two brass coated braided rubber hoses on the white ground.

Wire braided rubber hose

Contact Us

Our professional sales representatives will provide you the suggestions of metal wire and applications. Just tell us your requirements and your problems, we will help you solve them.
