Ideal Sizes of Galfan Wire For Your Choices

Galfan wire is covered with Zn-Al (Al 5%, Zn 95% or Al 10%, Zn 90%) alloy. Its corrosion resistance performance is about three times stronger than traditional galvanized wire. This is why it can be used to achieve a longer service life than the wires which are made of other materials. Through the replacement of traditional zinc coating with a thinner galfan wire coating, it offers improved weldability and formability properties.

  • Longer service life than galvanized wire.
  • Strong corrosion resistance.
  • Good ductility.
  • Customized sizes available.
  • Free samples are accepted.
  • Large orders enjoy special discount.
Contact Now
There is a Zn-Al alloy coated wire roll.

Specifications

  • Coating material: Zinc and aluminum alloy (Al 5%, Zn 95% or Al 10%, Zn 90%)
  • Wire diameter: 1.24 mm – 5.5 mm
  • Tensile strength: 1290 MPa – 1340 MPa
  • Packing: spool or coil wrapped with moisture-proof paper or plastic film.
Nominal Diameter Tensile Strength Stress at 1% Elongation Twist Elongation Standard
mm MPa MPa Times/360 °C Lo=250 mm As per GB, EN, IEC, JIS, ASTM standard, as well as customers' request
1.24–2.25 ≥1340 ≥1170 ≥18 ≥3%
2.25–2.75 ≥1310 ≥1140 ≥16 ≥3%
2.75–3.00 ≥1310 ≥1140 ≥16 ≥3.5%
3.00–3.50 ≥1290 ≥1100 ≥14 ≥3.5%
3.50–4.25 ≥1290 ≥1100 ≥12 ≥4%
4.25–4.75 ≥1290 ≥1100 ≥12 ≥4%
4.75–5.50 ≥1290 ≥1100 ≥12 ≥4%

Details

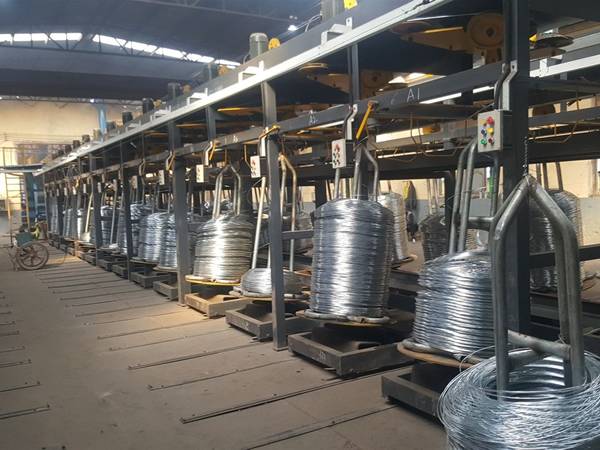

There is the production line of the galfan wire.

Production line of galfan wire

There are several galfan wire coils.

The finished galfan wire coil.

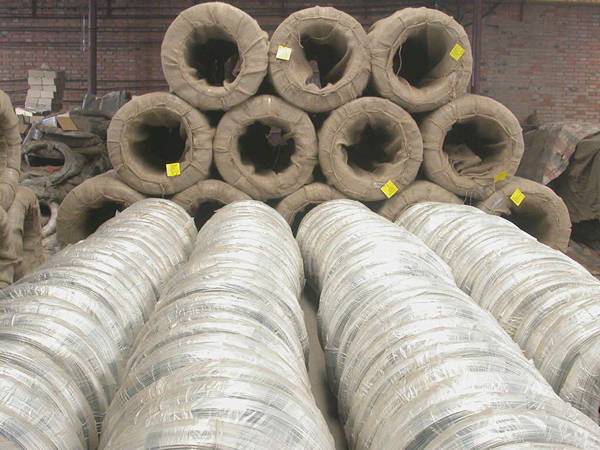

Galfan wire is wrapped with the moisture-proof paper.

Packing the galfan wire

Galfan wire is loaded into a truck.

Loading the galfan wire

Applications

  • Be made into gabion baskets and gabion mattress.
  • Be made into galfan wire tecco mesh
  • Be woven or welded into sheets for outdoor fences.
  • Be used in chemical equipment, marine shipbuilding industry.

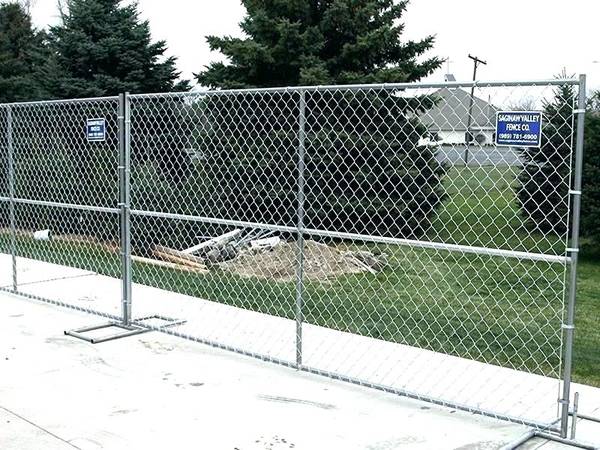

Galfan wires are used in fences making.

Fences

Galfan gabion mattresses are installed on a river bank.

Gabion mattress

There is a galfan chicken wire mesh sheet.

The galfan chicken wire

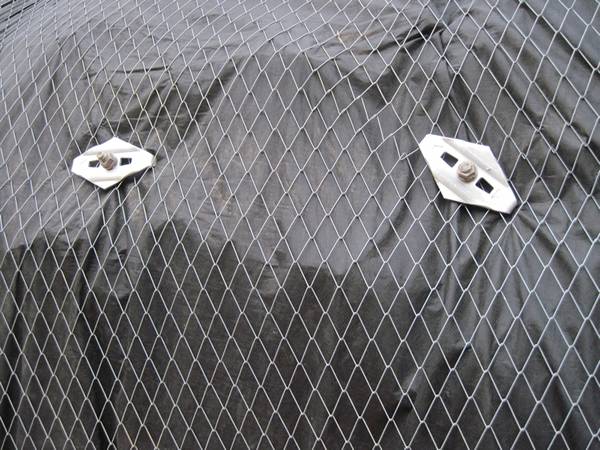

Two claw type spike plate is fastening the galfan tecco mesh.

The galfan tecco mesh
